Sliding Frame

You can turn your frame into a sliding window insect screen. We can supply you with channel that will allow the frame to slide to the left or right of your open window. This makes sense if you have restricted space, or a window sill that you don’t want to clear every time you want to open or close the window. You can also cover a larger area with two frames that cross over each other, but you may need extra channel as you will need double top and bottom.

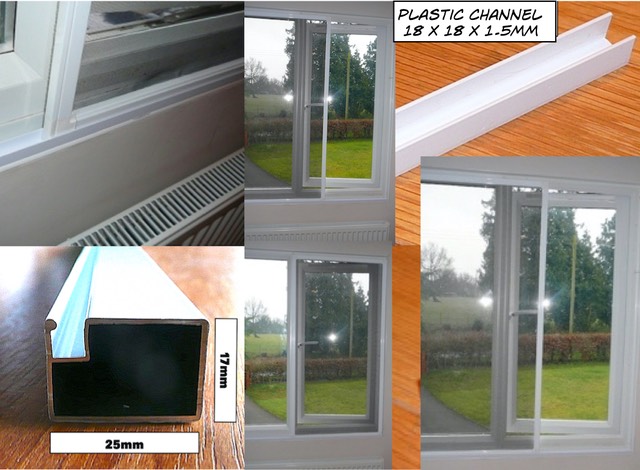

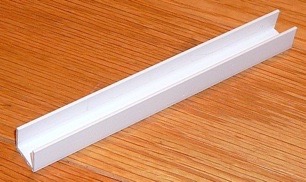

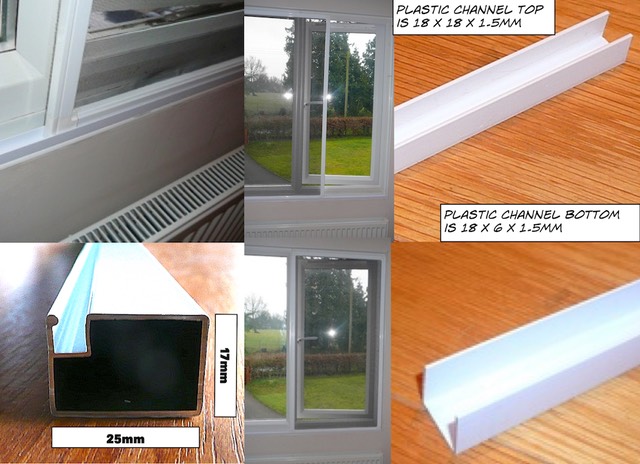

The channel  is 1.5mm thick. The top channel has an internal mesurement of 18mm and is 18mm deep. The bottom channel has an internal measurement of 18mm and is 6mm deep.

The frame comprises four profiles, four corners, rubber spline and grey fibreglass material.

When you buy a frame you get 2m of the top channel and 2m of the bottom (may not be continuous) 3M in two 1.5m sections withe 150x 150 frames. If you are using two frames to overlap then remember that you will need to double the amount of channel. By all means email or telephone us for advice and we may be able to supply the length of channel you need in the price. The channel can be glued or screwed (fixings not supplied). 2M of CHANNEL COMES WITH EACH FRAME

flyscreen sliding windows


If you want to make two frames out of one kit then you can buy the additional four corners below.

Buyers in Northern Ireland, Channel Islands, Isle of Wight, Scottish Highlands and Islands, there will be an extra charge. Eire will be more.  See Postcode listing on the Delivery Information Page but if in doubt and if you live in any of these areas, Europe or the Rest of the World please contact us for a delivery quote.


BUY THE FRAMES AND CHANNEL CONTACT US AS SUPPLY OF CHANNEL IS LIMITED 01760 441423


Aluminium Frame 100 x 100cm +2M Channel £38.99 free postage



Aluminium Frame 150 x 150cm +3M (in 1.5m sections) Channel £48.99 free postage



Four (4) extra Corners £12.99 (to make an additional frames) free postage
